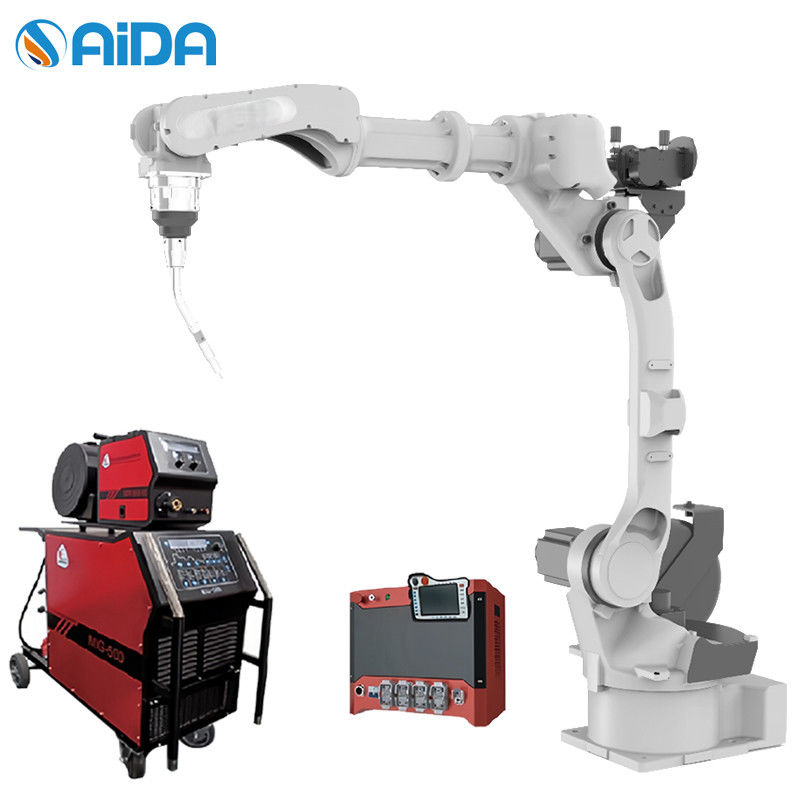

Manufacturer 6kg 1400mm Reaching Distance 6 Axis Welding Robot Arm

Name: Manufacturer 6kg 1400mm Reaching Distance 6 Axis Welding Robot Arm
Brand: AIDA FORKLIFT EQUIPMENT CO., LTD.
SKU: ZGRB-06-1400-010-W-MK
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: AIDA

Model Number: ZGRB-06-1400-010-W-MK

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negotiable

Packaging Details: Wooden Case Package

Delivery Time: 20 work days as per order volume

Supply Ability: 200 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                6kg Welding Robot Arm, 1400mm Welding Robot Arm


Model NO.:	ZGRB-06-1400-010-W-MK	Measure Method:	Automatic
Application:	Metal Fabrication Industry，Automotive Industry	Function:	Save Production Costs，improve Welding Quality
Structure:	ARC Welding Robot	Transport Package:	Wooden Case Package
Trademark:	AIDA	Origin:	China
After-sales Service:	Support	Warranty:	Support
Customization:	Available	Control Mode:	Point To Point Control

Model NO.:	ZGRB-06-1400-010-W-MK
Measure Method:	Automatic
Application:	Metal Fabrication Industry，Automotive Industry
Function:	Save Production Costs，improve Welding Quality
Structure:	ARC Welding Robot
Transport Package:	Wooden Case Package
Trademark:	AIDA
Origin:	China
After-sales Service:	Support
Warranty:	Support
Customization:	Available
Control Mode:	Point To Point Control

Manufacturer 6kg 1400mm Reaching Distance 6 Axis Welding Robot Arm

6-Axis Arc Welding Arm Payload 10kg Range 1400mm Welding Robot
The 6-axis arc welding robot is a type of industrial robot specifically designed for arc welding applications. Arc welding is a welding process that uses an electric arc to create a fusion of metals. These robots are equipped with a 6-axis articulated arm that provides flexibility and precision in maneuvering the welding torch to perform welding tasks.

The six axes of motion in a 6-axis arc welding robot allow for a wide range of movement and positioning capabilities, enabling the robot to reach different points within its work envelope and adjust its orientation as needed. This flexibility is crucial in arc welding applications where welding may need to be performed on complex geometries or in hard-to-reach areas.

Robotic welding is a highly advanced version of automated welding, in which machines conduct the welding, but welders still control and supervise the process. The use of robotic technology allows for precise and quick results, less waste, and greater safety.

Manufacturer 6kg 1400mm Reaching Distance 6 Axis Welding Robot Arm 0

Manufacturer 6kg 1400mm Reaching Distance 6 Axis Welding Robot Arm 1

Product Features

Manufacturer 6kg 1400mm Reaching Distance 6 Axis Welding Robot Arm 2

Manufacturer 6kg 1400mm Reaching Distance 6 Axis Welding Robot Arm 3

Product Specification

Model	ZGRB-06-2000-012-W-MK
Performance	Installation method	Ground, hoisting, wall
	Freedom of movement	6-axis
	Payload	12 kg
	Maximum reach	2000 mm
	Repeat positioning accuracy	0.05 mm
	Self weight	313kg
	Temperature	0-45°C
	Humidity	20%-80%
	Power capacity	4.5 KVA
Max. Working Range Swivel	J1	± 160º
	J2	-55º ~ +170º
	J3	-75º ~ +145º
	J4	± 190º
	J5	± 130º
	J6	± 220º
Max. Speed	J1	179º/s
	J2	179º/s
	J3	162º/s
	J4	315º/s
	J5	276º/s
	J6	1356º/s
Allowable Moment Bending	J4	103.5Nm
	J5	51.84Nm
	J6	32.64Nm

Product Specification

It is widely used in Automotive Industry, Aerospace Industry, Railway Industry, Metal Fabrication,Shipbuilding,
Construction,Oil and Gas Industry,Heavy Machinery Manufacturing, etc.
