Product Details
Place of Origin: China
Brand Name: AIDA
Certification: ISO,CE,EGS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: pallet packing for export
Delivery Time: 5-20 work days as per order volume
Payment Terms: T/T,L/C
Supply Ability: 200 set/month
Model NO.: |
XD-5203 |
Style: |
Single Face |
Insulation: |
Anti-Static |
Drive Motor: |
800W |
Lift Motor: |
Hydraulic |
Overall Width: |
550/680mm |
Overall Length: |
1670mm |
Transport Package: |
Export Package |
Specification: |
2000kg |
Trademark: |
AIDA |
Origin: |
China |
HS Code: |
84312090 |
Supply Ability: |
100 Units/Month |
After-sales Service: |
Support |
Warranty: |
Support |
Type: |
Pallet Truck Handle Rod |
Material: |
Steel |
Load Capacity: |
2T |
Entry Type: |
2-Way |
Customization: |
Available | Customized Request |
Model NO.: |
XD-5203 |
Style: |
Single Face |
Insulation: |
Anti-Static |
Drive Motor: |
800W |
Lift Motor: |
Hydraulic |
Overall Width: |
550/680mm |
Overall Length: |
1670mm |
Transport Package: |
Export Package |
Specification: |
2000kg |
Trademark: |
AIDA |
Origin: |
China |
HS Code: |
84312090 |
Supply Ability: |
100 Units/Month |
After-sales Service: |
Support |
Warranty: |
Support |
Type: |
Pallet Truck Handle Rod |
Material: |
Steel |
Load Capacity: |
2T |
Entry Type: |
2-Way |
Customization: |
Available | Customized Request |
The power handle kit is a retrofit module that integrates a driving motor, wheel, accelerator, controller, cylinder, lithium battery, and harness assembly. It is designed to effortlessly convert an old manual pallet truck into an electric power pallet truck within minutes, all at a low cost.
Parameters
| Brand | AIDA | Unit |
| Model | XD-5203 | |
| Power | Electric | |
| Operation way | Walkie | |
| Load capacity | 2000 | kg |
| load centre distance | 600 | mm |
| Self weight | 42 | kg |
| Max.ground clearance | 200 | mm |
| speed,loaded/unladen | 4.8/5.2 | km/h |
| Gradeability,loaded/unladen | 3/7 | % |
| Motor | 0.8 | kW |
| Battery | Li-on 48V 15Ah | V/Ah |
(1) Measure dimensions as below to make sure compatible with the Power handle kit
(2)Disassemble the the manual handle rod from fork frame of the old manual pallet truck, keep the original fork frame
(3) Assemble the the Power handle kit to the original fork frame

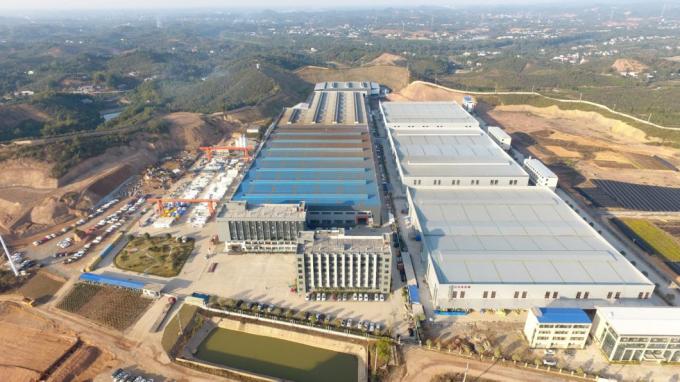

AIDA is a high-tech enterprise integrating R&D, production and service, as a solution provider of professional material
