Product Details
Place of Origin: China
Brand Name: AIDA
Certification: ISO,CE,EGS
Model Number: WDG15B
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: pallet packing for export
Delivery Time: 5-20 work days as per order volume
Payment Terms: T/T,L/C
Supply Ability: 200 set/month
Load Capacity: |
1500kg |
Lift Height: |
1600mm |
Operation Type: |
Walkie |
Material: |
Re-inforced Steel |
Moving Way: |
Electric Lifting Hydraulic Moving |
Battery: |
Lead-acid Battery 12V 110Ah |
Size: |
1700*800*2086mm |
Weight: |
380kg |
Load Capacity: |
1500kg |
Lift Height: |
1600mm |
Operation Type: |
Walkie |
Material: |
Re-inforced Steel |
Moving Way: |
Electric Lifting Hydraulic Moving |
Battery: |
Lead-acid Battery 12V 110Ah |
Size: |
1700*800*2086mm |
Weight: |
380kg |

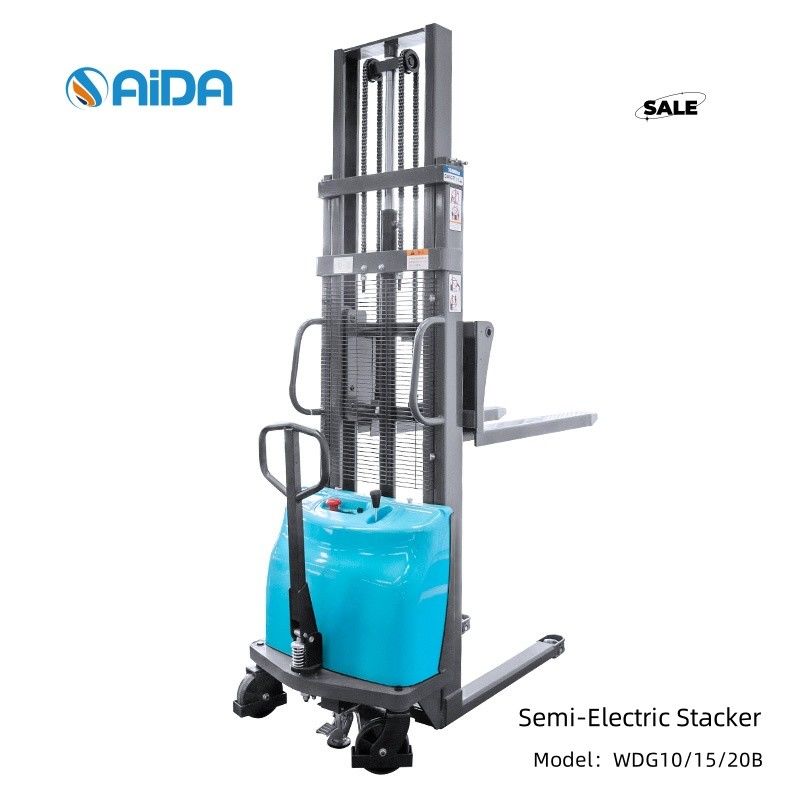

2000 capacity 3.0m Semi Electric Hydraulic Pallet stacker
Features
1) Low center of gravity makes the truck more stable and reliable;
2) High-quality steel ensures the stability and strength of the vehicle;
3) Using high-quality pump station, light and flexible, labor-saving and efficient;
4) An explosion-proof valve ensures that the platform descends smoothly and protects the safety of the operator;
5) The buttons arranged according to ergonomic requirements are more in line with the operator's operating habits.
Application
The Semi-Electric Pallet Stacker to be used for goods and cargo handling in logistics, warehousing, wholesale and retail stores, stocks, automobile manufacturing, factories,etc.
Technical Parameters
| Model | WDG15B |
| Load capacity | 1500kg |
| Tyre size, front | φ180×50 |
| Tyre size, rear | φ80×70 |
| Lift height | 1600/2000/2500/3000/3500/4000mm |
| Lowered height | 90mm |
| Overall length | 1505mm |
| Fork dimensions | 1070*142*60mm |
| Distance between fork arms | fixed 550/680mm |
| Turning radius | 1415mm |
| Groung clearance | 25mm |
| Battery | 12V 110AH |
