Product Details
Place of Origin: China
Brand Name: AIDA
Certification: ISO,CE,EGS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: pallet packing for export
Delivery Time: 5-20 work days as per order volume
Payment Terms: T/T,L/C
Supply Ability: 200 set/month
Model NO.: |
WDG12QE |
Battery Voltage: |
>60V |
Battery Type: |
Lithium Battery |
Wheel Size: |
12" |
Motor: |
Brush |
Frame Material: |
Steel |
Folded: |
Unfolded |
Max Speed: |
20-40km/h |
Range Per Power: |
31-60km |
Drive Motor: |
0.75kw |
Lift Motor: |
2kw |
Max Lift Height: |
1600/2500/3000/3500mm |
Specification: |
1750*790mm |
HS Code: |
84279000 |
Package Size: |
1800.00cm * 800.00cm * 2300.00cm |
Package Gross Weight: |
600.000kg |
Wattage: |
>500W |
Customization: |
Available | Customized Request |
Capacity: |
1000kgs |
Dimensions: |
2100*1200*2050mm |
Drive Type: |
AC Motor |
Fork Length: |
1200mm |
Fork Thickness: |
50mm |
Fork Width: |
160mm |
Lifting Height: |
6m |
Max Climbing Ability: |
15° |
Max Travel Speed: |
6km/h |
Min Turning Radius: |
1700mm |
Product Name: |

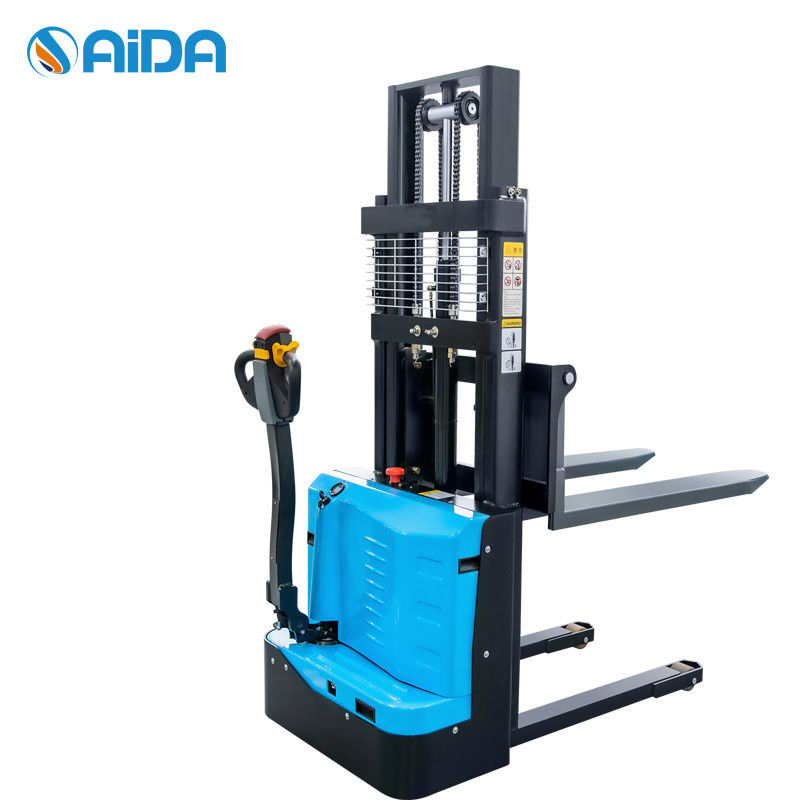

Electric Stacker Forklift |
Tire Type: |
Solid Rubber |
Weight: |
1200kgs |
Model NO.: |
WDG12QE |
Battery Voltage: |
>60V |
Battery Type: |
Lithium Battery |
Wheel Size: |
12" |
Motor: |
Brush |
Frame Material: |
Steel |
Folded: |
Unfolded |
Max Speed: |
20-40km/h |
Range Per Power: |
31-60km |
Drive Motor: |
0.75kw |
Lift Motor: |
2kw |
Max Lift Height: |
1600/2500/3000/3500mm |
Specification: |
1750*790mm |
HS Code: |
84279000 |
Package Size: |
1800.00cm * 800.00cm * 2300.00cm |
Package Gross Weight: |
600.000kg |
Wattage: |
>500W |
Customization: |
Available | Customized Request |
Capacity: |
1000kgs |
Dimensions: |
2100*1200*2050mm |
Drive Type: |
AC Motor |
Fork Length: |
1200mm |
Fork Thickness: |
50mm |
Fork Width: |
160mm |
Lifting Height: |
6m |
Max Climbing Ability: |
15° |
Max Travel Speed: |
6km/h |
Min Turning Radius: |
1700mm |
Product Name: |
Electric Stacker Forklift |
Tire Type: |
Solid Rubber |
Weight: |
1200kgs |
1) Has a shock absorber to reduce noise;
2) With low voltage protection device, effectively prolong battery life;
3) Four fulcrum structure, low center of gravity design, with good stability;
4) Compact structure, high performance with regenerative braking and easy maintenance.
| Model | WDG12QE |
| Load capacity | 1200-1500kg |
| Lift height | 1600/2500/3000/3500mm |
| Lowered height | 90mm |
| Overall length | 1750mm |
| Fork dimensions | 1070×142×60mm |
| Distance between fork arms | 550/660mm |
| Turning radius | 1437mm |
| Groung clearance | 30mm |
| Travel speed | 3.5/4 km/h |
| Gradient,Laden/unladen | 3/10% |
| Drive motor | 0.75kw |
| Lift motor | 2kw |
| Battery | lead-acid 75V120Ah |
