Product Details
Place of Origin: China
Brand Name: AIDA
Certification: ISO,CE,EGS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: pallet packing for export
Delivery Time: 5-20 work days as per order volume
Payment Terms: T/T,L/C
Supply Ability: 200 set/month
Model NO.: |
WDG15QM |
Fuel: |
Electric |
Load Center: |
500mm |
Lift Height: |
1600-3500mm |
Condition: |
New |
Drive Motor: |
0.75kw |
Lift Motor: |
2.2kw |
Max Lift Height: |
1600/2500/3000/3500mm |
Transport Package: |
6PCS In One Pallet |
Specification: |
2180*790*90mm |
Trademark: |
AIDA |
Origin: |
China |
HS Code: |
84279000 |
Supply Ability: |
600 Units/Month |
After-sales Service: |
Support |
Warranty: |
1 Year |
Cab Location: |
Adjustable |
Type: |
Stacker |
Power: |
DC Motor |
Load Capacity: |
2.5-3.5t |
Customization: |
Available | Customized Request |
Dimensions: |
3000x1200x2050mm |
Driving Speed: |
7-10km/h |
Fork Height: |
85-200mm |
Fork Length: |
1150-2050mm |
Fork Width: |
150-200mm |
Gradeability: |
15% |
Lifting Height: |
3-6m |
Lifting Speed: |
0.2-0.4m/s |
Lowering Speed: |
0.2-0.4m/s |
Power Source: |
Electric |
Product Name: |
Electric Stacker Forklift |
Tire Type: |
Solid Tire |
Turning Radius: |
1700-2000mm |
Weight: |
1800-2500kg |
Model NO.: |
WDG15QM |
Fuel: |
Electric |
Load Center: |
500mm |
Lift Height: |
1600-3500mm |
Condition: |
New |
Drive Motor: |
0.75kw |
Lift Motor: |
2.2kw |
Max Lift Height: |
1600/2500/3000/3500mm |
Transport Package: |
6PCS In One Pallet |
Specification: |
2180*790*90mm |
Trademark: |
AIDA |
Origin: |
China |
HS Code: |
84279000 |
Supply Ability: |
600 Units/Month |
After-sales Service: |
Support |
Warranty: |
1 Year |
Cab Location: |
Adjustable |
Type: |
Stacker |
Power: |
DC Motor |
Load Capacity: |
2.5-3.5t |
Customization: |
Available | Customized Request |
Dimensions: |
3000x1200x2050mm |
Driving Speed: |
7-10km/h |
Fork Height: |
85-200mm |
Fork Length: |
1150-2050mm |
Fork Width: |
150-200mm |
Gradeability: |
15% |
Lifting Height: |
3-6m |
Lifting Speed: |
0.2-0.4m/s |
Lowering Speed: |
0.2-0.4m/s |
Power Source: |
Electric |
Product Name: |
Electric Stacker Forklift |
Tire Type: |
Solid Tire |
Turning Radius: |
1700-2000mm |
Weight: |
1800-2500kg |

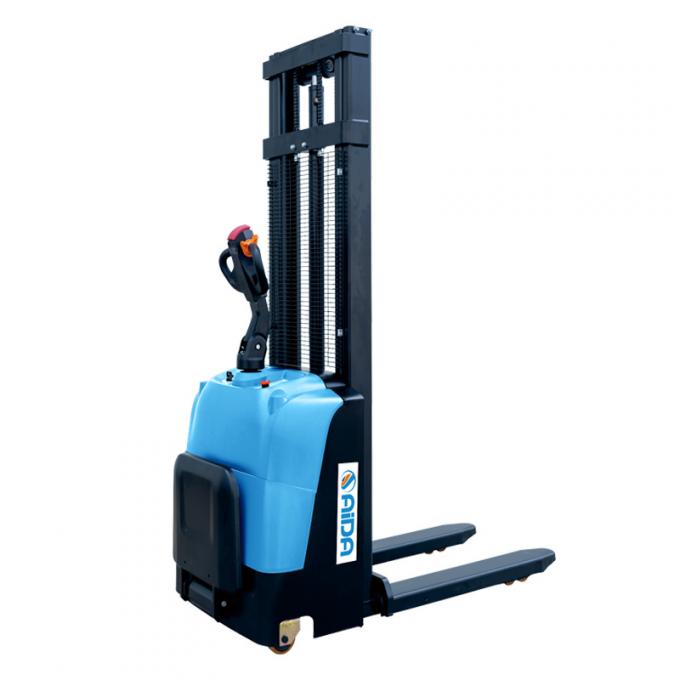

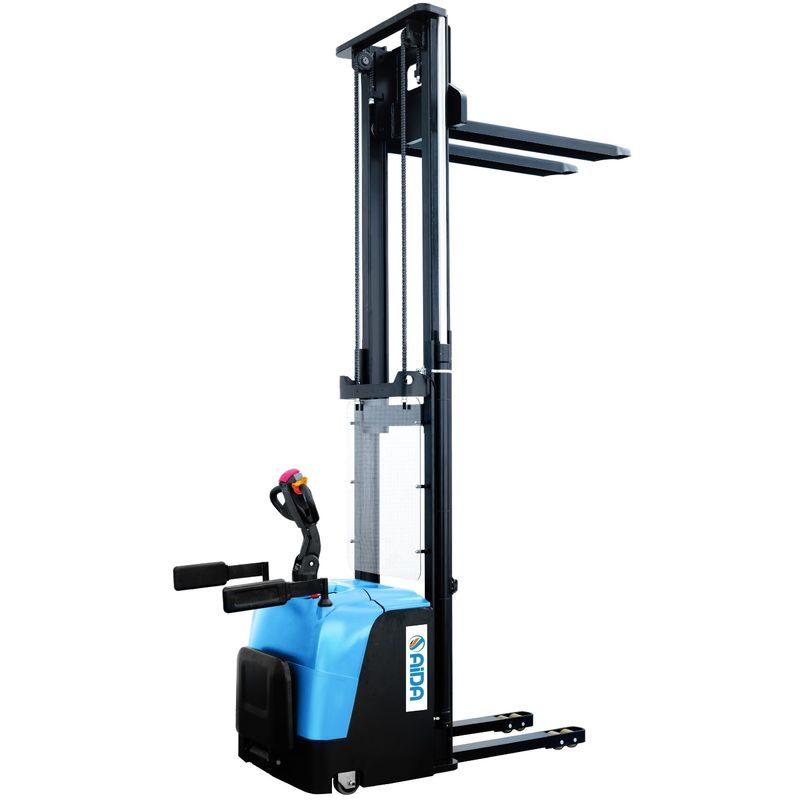

AIDA 1.5 Ton Electric Pallet Stackers
- Emergency brake for safety
- Compact yet powerful
- Floating drive for rough terrain
- Durable horizontal wheels
- High performance and stability
- Lift 1500kg loads
Contact AIDA for reliable electric stackers
| Model | WDG15QM |
| Load capacity | 1500kg |
| Tyre size, front | φ80×70 |
| Tyre size, rear | φ210×70 |
| Lift height | 1600/2500/3000/3500mm |
| Lowered height | 90mm |
| Overall length | 1770(foldable)/2180mm |
| Fork dimensions | 1070×142×60mm |
| Distance between fork arms | 550/660mm |
| Turning radius | 1470(foldable)/1880mm |
| Groung clearance | 50mm |
| Travel speed | 3.5/4.5 km/h |
| Gradient,Laden/unladen | 4/6% |
| Drive motor | 0.75kw |
| Lift motor | 2.2kw |
| Battery | lead-acid 24V75Ah |
Q1: Are you a factory or a trading company?
A: We are a factory. We are the professional manufacturer of material handling equipment.
Q2: What products do you mainly do?
A:We specialize in producing all kinds of material handling vehicle,such as hand/semi electric/electric pallet truck,
manual/electric/semi electric stacker,electric forklift.
Q3: Are the pallet trucks covered by a warranty?
A: Yes. AII our products carry a full 1-year major parts warranty.
Q4: What is your payment term?
A: T/T or L/C, if you want any other way, please contact us.
Q5: How about your shipping methods?
A: Transportation depends on the client's choice, usually by sea or rail. You can also choose other shipping methods
and inform us before shipment.
Q6: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
